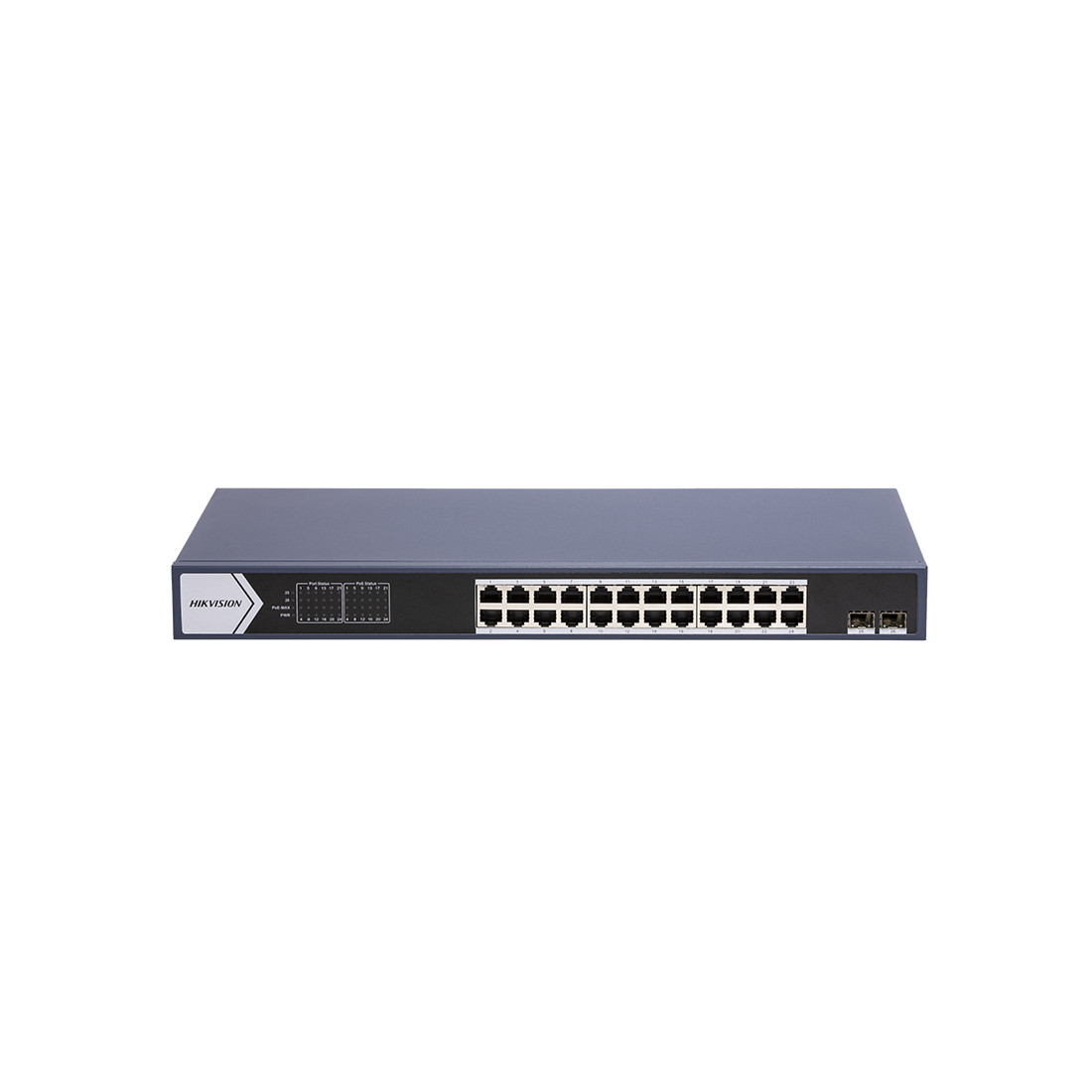

Коммутатор, Hikvision, DS-3E0526P-E/M(B), Неуправляемый, 24 x Gigabit RJ45, РоЕ 802.3af/at 225W, 2 x SFP, Стоечный
24 × Gigabit PoE port,
2 × Gigabit SFP fiber optical port.
IEEE 802.3at/af standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
6 kV surge protection for PoE ports
PoE power management
Gigabit network access
Wire-speed forwarding
Store-and-forward switching
Solid high-strength metal shell
DS-3E0526P-E/M Shell Net Weight Metal material 2.92 kg (6.44 lb) Gross Weight 4.12 kg (9.08 lb) Dimensions (W × H × D) 440 mm × 44 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'') Operating Temperature 0 °C to 45 °C (32 °F to 113 °F) Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F) General Operating Humidity Relative Humidity Power Supply Max. Power Consumption 5% to 95% (no condensation) 5% to 95% (no condensation) 100-240 V AC, 50/60 Hz, Max. 4 A; 250 W Power Consumption in Idle 25 W Installation Mode Surge Protection Rack (equipped with mounting ears) 6 kV Ports MAC Address Table 24 × Gigabit PoE port,2 × Gigabit fiber optical port 8 K Network Parameters Switching Capacity Packet Forwarding Rate 52 Gbps 38.69 Mpps Internal Cache 4.1 Mbits PoE Standard PoE Power Pin IEEE 802.3af;IEEE 802.3at; End-span: 1/2(+), 3/6(-) PoE Power Supply PoE Port Max. Port Power PoE: Ports 1 to 24 30 W PoE Power Budget 225 W
